Moisture Meter MK30LP-CT and -CTB - Water Content Measurement of Liquid Mixtures and Wet Masses in Vessels and Pipes -- Portable Use Possible

Economical pricing

Main Specifications
• a new special instrument for thick materials, penetrates to 3.0 mm (CT) / 7.0 mm (CTB) in all fibre materials
 • extremely wide moisture (water content) range from 4% to the limit of plain water

• applies Visilab's new proprietary dynamic analysis algorithms for fast operation and immediate response to fast changes in level

• Connection to process via R1/2" standard fitting

 • measuring distance zero (requires contact), area 4.0 mm (CT) 10.0 mm (CTB) in diameter
• applications in pulp and cellulose processing, processing of special fibres for textiles etc.
• light weight 0.8 kg, structure IP 67, water tight

• withstands +1..+102 C and measures over this range. Pressure range 1.0 +/-1.0 bar (CT), 1.0 +/-0.5 bar (CTB)

• no display, no keyboard, communication via RS232/RS485 to MK30LP software. A display-containing version is available for both models soon
• very low noise level in signal
• superior long-term stability, based on Visilab's extremely stable microwave technology, self-cleaning AISI316 and PTFE surfaces
• simple to use but versatile
• free software MK30LP, with graphics, calibration tables, statistics, data retrieval.
 • all important details of the meter can be configured with the software
• interfaces available:
    • RS232/RS485 for the PC program, 115 200 bauds (other speeds available)
    • 4-20 mA, one 2 Volt analog output
     • LED moisture level indicator with a preset target
    • USB at request

• measuring speed is 5..30 Hz depending on parameters
• suitable for most wet fibres from 4 % to 100 % of water plus many other materials
• data collected to Laptop with the MK30LP program. All programs are downloadable at:   Check updates..
• A self-cleaning structure made of AISI316 and PTFE. To be mounted so that mass flow will prevent clogging and material buildup
 • designed and manufactured by Visilab in Finland

Side views of the models MK30LP-CT and MK30LP-CTB sensors

    Enclosure variants exist

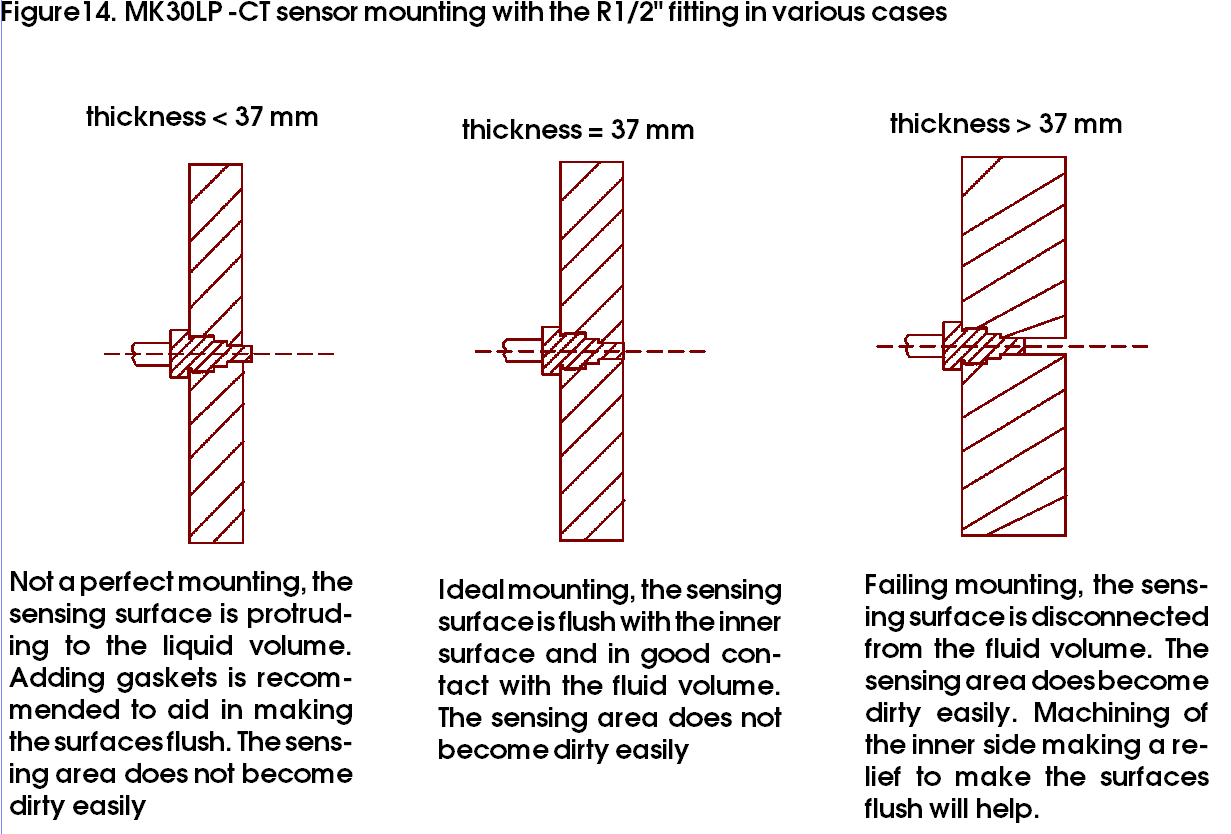

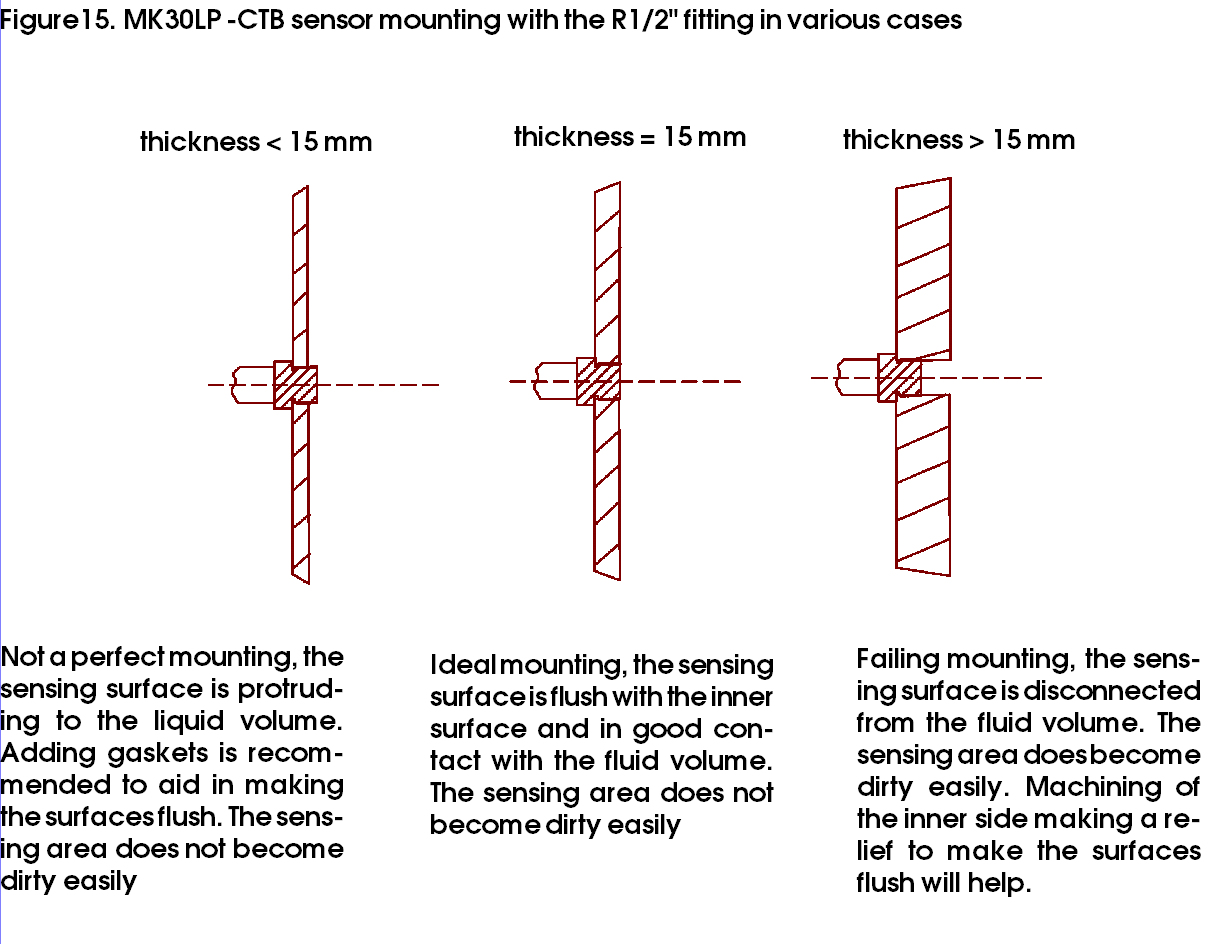

Mounting to the vessel wall:

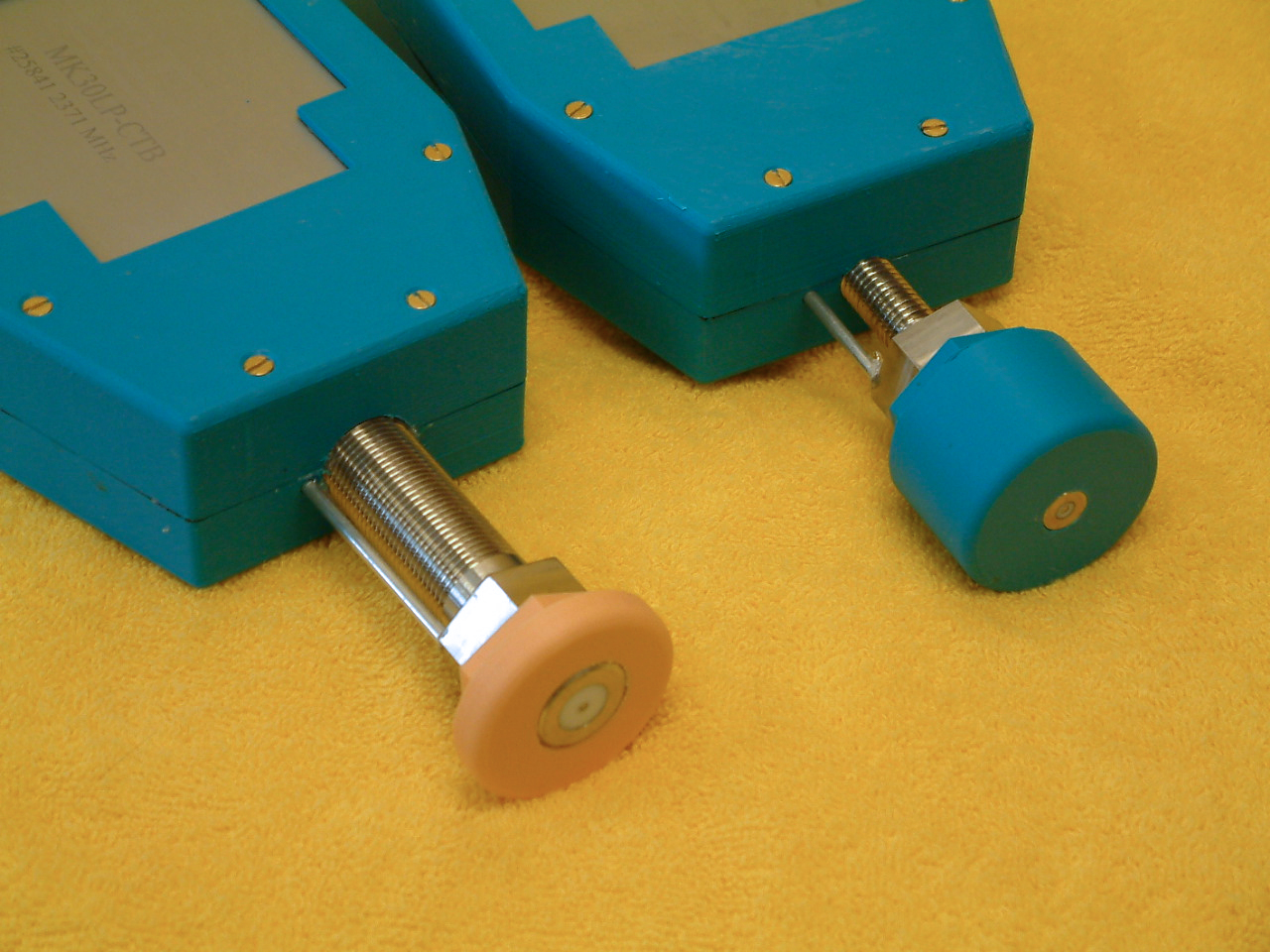

Touchpads for portable use of measuring soft materials



See the list of current variants

Visilab reserves the right to modify the look and feel and operational characteristics of the products without any prior notice.


Options:


The meter is by default delivered with a 5 m cable. Delivery options (3), long cables possible:

   • cable to DCS analog outputs and power feed (default). The DCS will deliver +24 Volts and get either voltage or 4-20 mA signals

    • cable and power supply -PS with connections to laptop (RS232/USB) and DCS

   • MK30R-DISP unit making it virtually identical to MK30R (refer to MK30R data sheet) with wireless communications and the sensor at a longer distance

   • MK30R-CTD or MK30LP-CTBD sensors with an added integral alphanumeric display, then program-wise behaves like MK30R-DISP and AK30 / Advanced programs are used. The box is slightly deeper and has an alphanumeric display on the front panel

For optional connections to the external world, order any of these:
    • A display unit MK30R-DISP
    • model -PS power supply
     • A version of sensor with an integral display unit MK30LP-CTD / -CTBD (then no MK30R_DISP)
     • an isolated RS232-USB dongle and software for connection to a Laptop

A fast option for both variants will be soon available (MK30LP-CT/CTB-F) without/with a display option

    • Moisture standard -STDMK for regular checking for long-term stability
   • LAN485 a communications bridge for acquiring data from up to 30 units of MK30LP-CT. Can be used for other data communications via RS485. LAN485 is able to supply 24 Volt power to each sensor and communications is based on RS485 packet network. LAN232 bridge can accept up to 8 units by using RS232 lines.
      • More information..
      • Maintenance Pack..



Packing List of a Standard Product Shipping:

    • Model MK30LP-CT / -CTB sensor with calibrations according to customer samples
    • User's guides in a binder
     • Software MK30LP in a USB memory stick, full documentation in PDF format
    • the basic delivery contains a 12-wire cable of 5 meters  with an ITT Cannon connector at one end.

The options of application are:

    • direct connect to the mill DCS with the cable, using the 4-20 mA or 2 Volt analog

    • use -PS power supply unit for getting power and connectors to serial port and analog outputs. The connector fits directly the -PS or the MK30R-DISP units. The laptop program for further data retrieval is MK30LP.

    • use the MK30R-DISP display unit for portable use and data acquisition, battery supported operation. The laptop program for further data retrieval is AK30, ATOM etc.
