Accessories for Meters

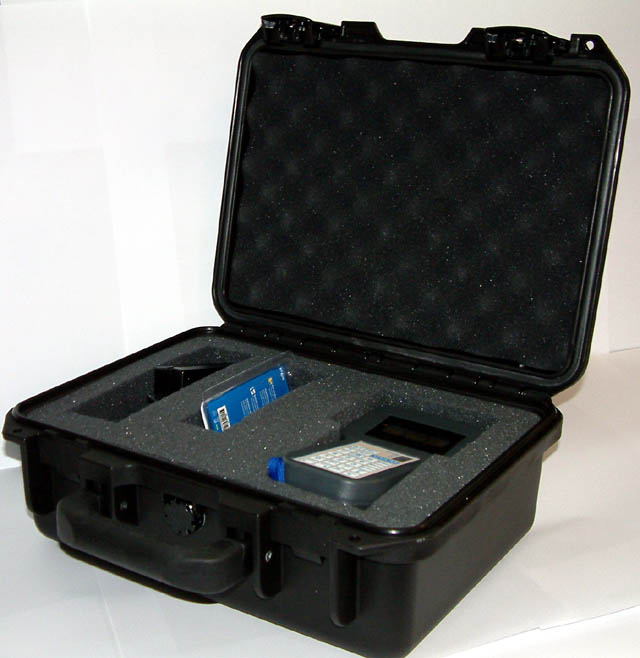

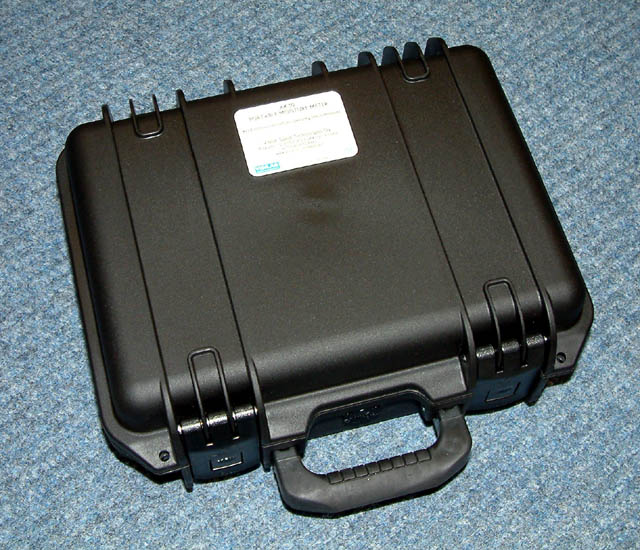

-CAR - a carrying case for portable moisture meters




Product high-lights:

• waterproof, shock-proof, a sturdy case made of injection molded resin, lifetime guarantee
• keeps the meter protected and ready for use
• all important accessories are carried with it safely
• suitable for AK30 and all other small product models
• a very economical price

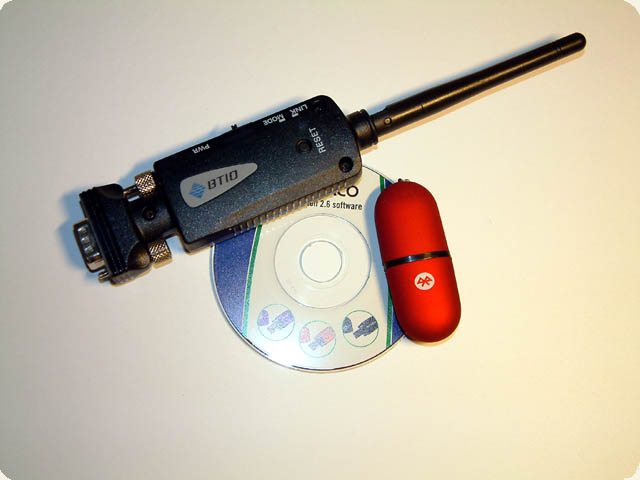

Wireless Packs - wireless data transmission for meters and sensors with Bluetooth



Product high-lights:

• an ideal way for checking on meters and acquiring data with a laptop while walking in the mill
• can be used as a permanent solution for reducing cables and costs
• a simple low-cost method of connecting a process sensor to a PC at a distance of max 10 m or 100m
• supports all IRMA-7 moisture meters and Caposito process capacitance meters
• -WPDS at 10 m max for IRMA-7 model D etc. supporting speeds 9600/38400/115200 bauds
• -WPDL at 100 m max for IRMA-7 model D etc. supporting speeds 9600/38400/115200 bauds
• easy to use, just plug in the BT dongles, install PC BT software and start using the new serial port
• packet protocol and keyboard mode fully supported
• small dongles, power module included for the meter end, the PC end goes to a USB socket, everything included to start using it right away
• easy to use with another meter model after possible baud rate reconfiguration
• inquire pricing
• AK30 does not need any accessory in this respect


    Bluetooth diagram



TEAK30 - a keyboard and display unit for field use for process meters having no integral display




Product high-lights:

• a simple low-cost item for manually collecting data in field conditions from moisture meters and other sensors with packet protocol and keyboard mode
• small IP 67 box, large keys and a clear display, power module included, low weight
• supports all IRMA-7 model D moisture meters
• can operate either as a digital interface over the RS232 cable to the meter or as an analog interface connected to the voltage output signal or both
• as an analog interface displays moisture and web temperature
• easy to use, easy to configure, just plug in the cable to the -PS
• for meter configuration, managing data acquisition events, triggering, browsing lists, changing address and calibration table etc.
• line speeds 9600/38400/115200 bauds optional for all purposes
• a "gloves-on" product with large keys and clear display in a water-tight box

    User's Guide

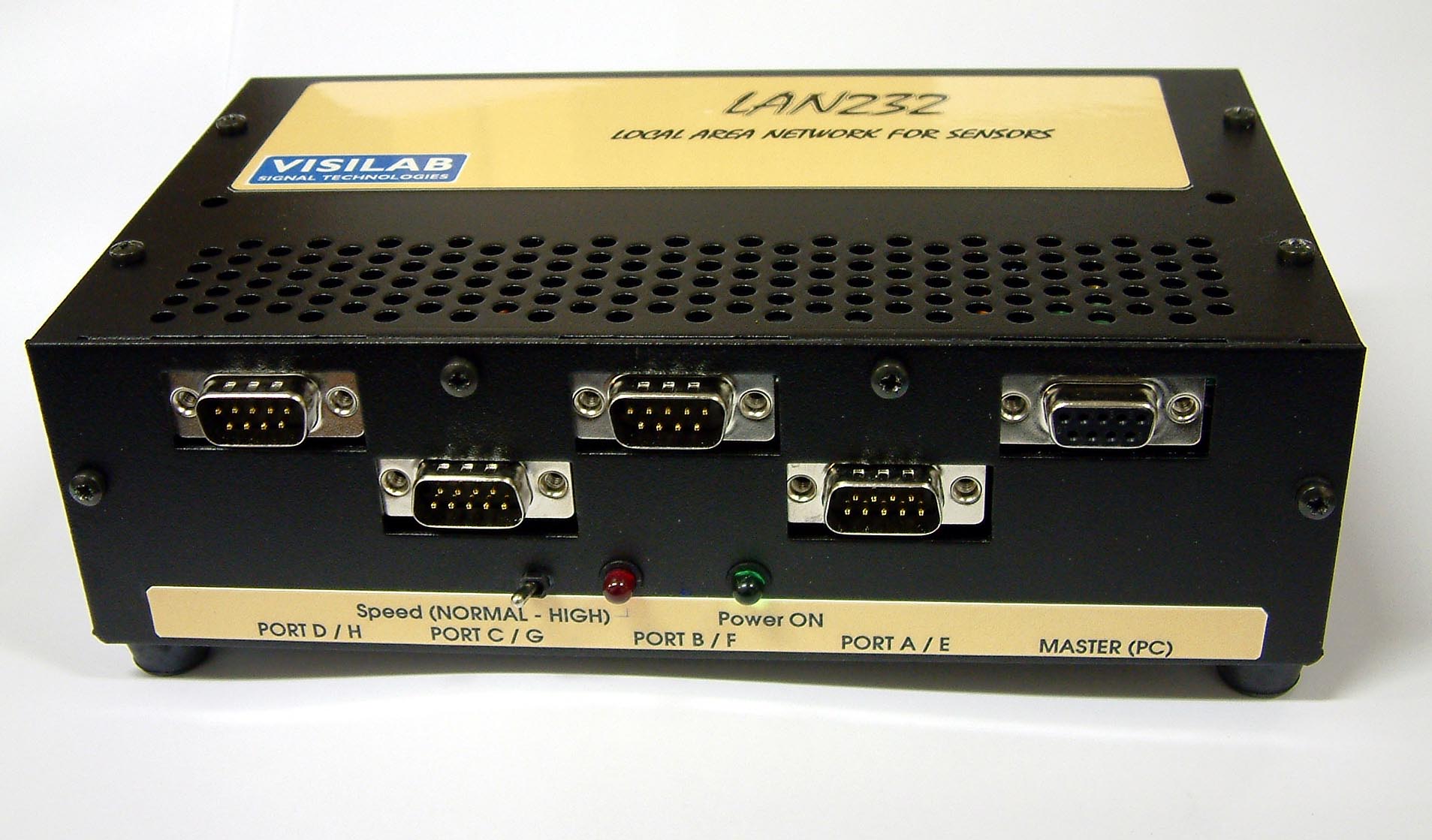

LAN232 - networking for meters and sensors



Product high-lights:

• a simple low-cost way of collecting data from several meters and sensors
• supports all IRMA-7 moisture meters and Caposito process capacitance meters
• easy to use, just plug in the RS232 cables
• optimal while using the Advanced software for acquiring data from several meters, any models, even mixed
• each meter has a differing address to identify it
• packet protocol and keyboard mode fully supported
• small box, low cost, power module included
• low speed but long distances, legs up to 40 meters with RS232, up to 1200 meters with RS485
• supports the high-speed serial port too (38400 bauds or 115 300 bauds)
• supports RS485 LAN use with both speeds

    User's Guide

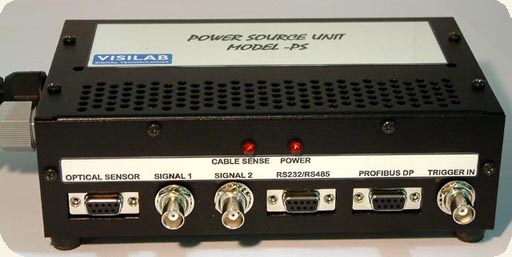

-PS - a power source unit for all meters




Product high-lights:

• supplies power to the moisture meter and distributes all communication signals with the connectors
• connectors for RS232/485 (D9 female), Profibus DP (D9 female), trigger input (BNC), voltage output 1 (BNC for moisture/web temp/head temp etc.), voltage output 2 (BNC for web temp if -DAV option in meter) and a connector (D9 female) for an optional optical sensor for arranging triggering
• now standard in all moisture meter deliveries
• IEC320 socket for international wall plug compatibility with a fuse and a switch
• small size, low weight, rubber feet for tabletop use, DIN rail mounting kit included with simple fixing with screws
• a simple cable arrangement
• a very long operating life
• dimensions: 70 x 140 x 230 mm
• no protection classification, to be used in a cabinet or in office conditions only. May be used in clean environments too
• CE marked and has all certificates and approvals including UL
• the operating guide is in english
• can be used as a direct replacement for the old power supplies

    Operating manual



-GPH - a general purpose L bracket for fixing on-line meters




Product high-lights:

• a simple low-cost item for fixing the meter to various positions in paper machines, pilot machines or research studies
• keeps the working distance constant and prevents vibration
• small size, low weight, simple fixing with two to four M6/M8 screws
• rigid Aluminum structure, oxidated black
• suitable for all product models
• a camera tripod thread for mobile mounting

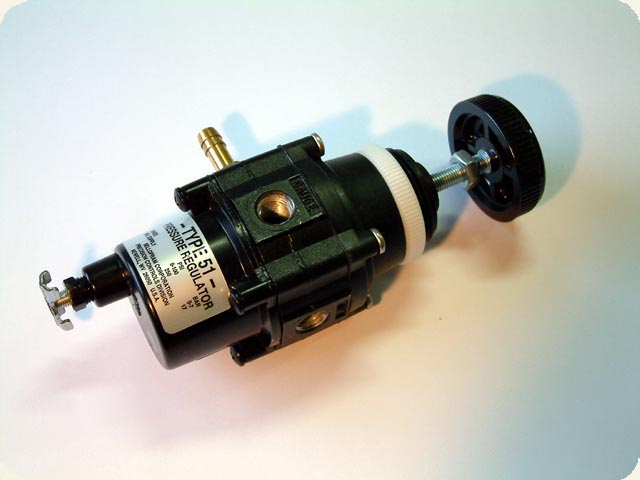

-PR - a pressure regulator for model D meters




Product high-lights:

• supplies air to the moisture meter for cooling and cleaning of windows
• hose connector 1/3" for low pressure tubing
• thread R1/4" for high pressure connector and tubing
• has a dust filter for 5 micron particles
• inlet range 0 - 7 bar (max 17) or 0 - 100 PSI (max 250)
• outlet pressure adjustable by hand or by tool if knob removed
• has a pressure gauge port R1/4" and a blind plug when not used
• bottom drain valve for condensates
• temperature range of air -18 to 71C (0 to 160 F)
• can be installed to a panel with a cut-out of 39.5 mm in diameter

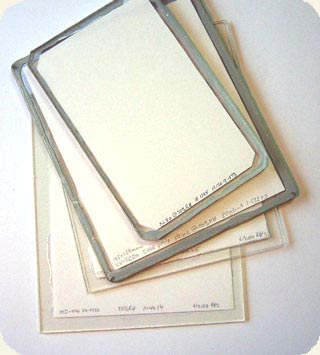

-STD - a series of standards for all meters

Product high-lights:

• moisture standards for each moisture meter model
• a customer sample or a special high durability paper enclosed within glasses and epoxy sealed
• available as a plain glass or with a plastic moulding
• either manual use or installed to the scanner system home base
• supports the automatic or manual standardization
• reflection measurement
• prepared according to meter model and customer spec's
• other NIST-traceable standards for other meter models


    User's Guide
