AK40 Infrared On-Line Moisture Meter

SUPER ECONOMICAL - LOW MAINTENANCE COST

- a new small and low-cost meter for measuring continuous moisture signal
- model AK40 in an identical box as AK50


Product's top features (internal software version V1.31 and onwards):

• applications in on-line measurements of fibre products and water-based chemicals, like glues, coatings and pigments
• a completely new pricing with this line of instruments. They can be now installed to new positions not possible before
• based on new ultra-stable technology developed by Visilab
• DCS interfaces: 0..5 V analog signals for moisture and web temperature, 4-20 mA for moisture, wireless Bluetooth for PC, RS232 for PC up to 40 meters at 9600 bauds
• light weight 2,7 kg, structure IP67, an Aluminum case with hard lacquer
• three high-contrast displays and a diaphragm keyboard for field operation and meter configuration manually
• measuring distance 5..15 mm, area approximately 10 mm in diameter, no contact required
• shows a trend curve of recent history, continuously, 64 points on display
• display's background colour may indicate crossing of preset moisture levels
• display's background colour may indicate crossing of preset moisture levels (high/low selected by user)
• switched with a key between a large numeric display and trend display + data

• designed for easier positions. More difficult positions may require increased maintenance and cleanup. Otherwise this meter is able to work at high moistures too.

• extremely low noise level
• superior long-term stability
• simple to use
• has useful data capture features, a large data memory
• when Autotimer is sampling, the center display changes to red colour
• intelligent software AK30, AK30Mini, IRMA7Basic with graphics, calibration tables, statistics, data retrieval. The AK30 program fully supports this meter.
• DIM mode when display not in active use

• Flash calibration for generating a new calibration in field conditions. Only the basis weight of paper required to get a working calibration. Fine tuning can be done to it after that and ready for measuring, in seconds.

• automatic zeroing of the moisture reading if the difference only is of importance, referring to a sample

• if dry weight percent is required for measurements, just turn the measuring unit to DRY-% and it will automatically convert the reading, no specific calibration required
• if dryness percent is required for measurements, just turn the measuring unit to YDRYNESS and it will automatically convert the reading, no specific calibration required
• measuring speed is 72Hz and output is 5Hz for moisture data
• suitable for paper and board plus many other materials, like textiles, felts
• excellent for on-line quality control.
• data displayed on the colour displays and collected to PC with the AK30, AK30Mini, IRMA7Basic or the optional Advanced program:   Check updates..
• our price beats the competition
• designed and manufactured in Finland


Note to all users: Please keep the number of used memory banks below 820. When the memory is reaching that count, please erase the memory bank system.

Latest feature additions:

• with FAST filter, true 5 Hz data acquisition

• Red big numbers used for indicating the average value in statistics

• statistics display speed selectable (FAST / NORMAL)

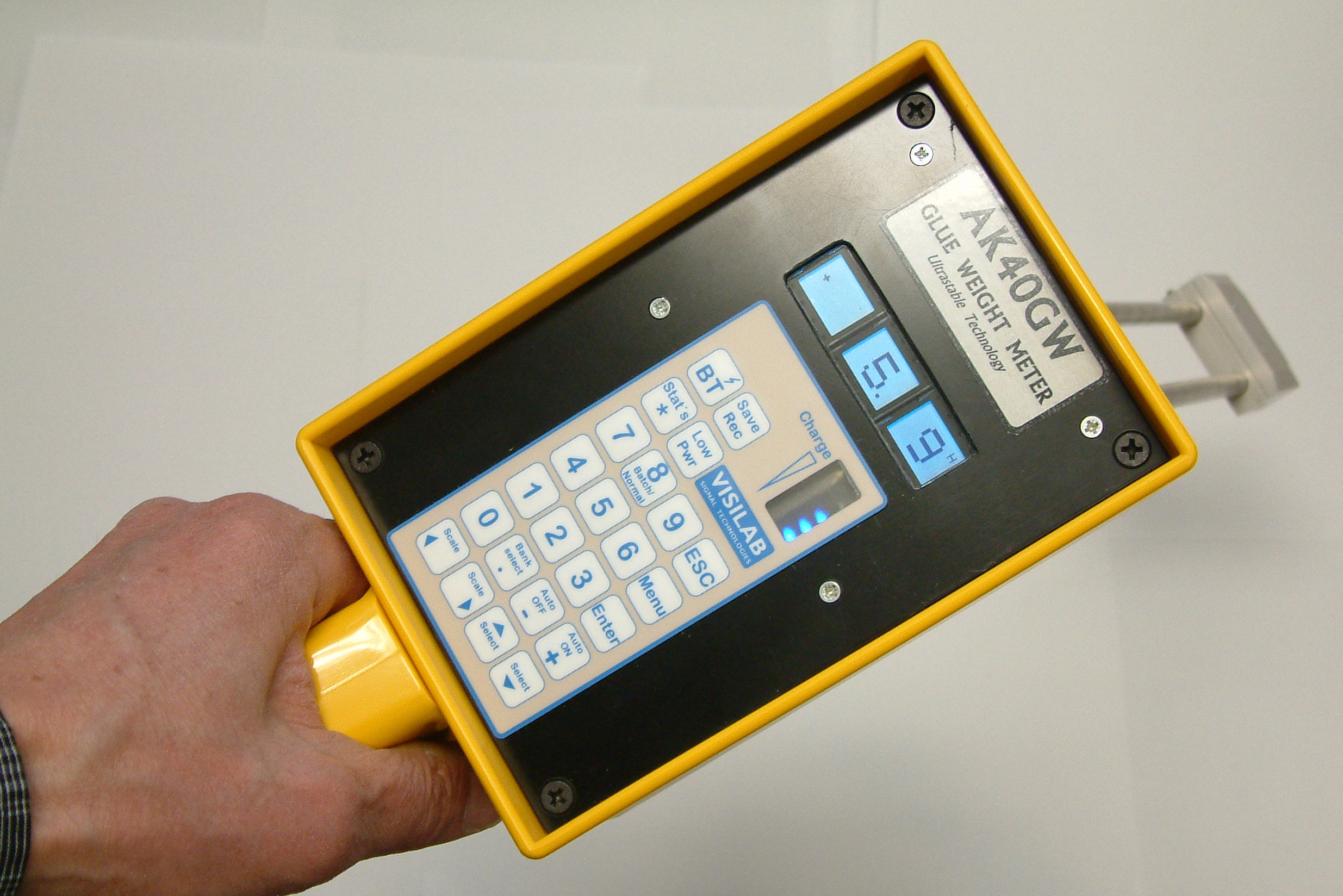

• a new submodel AK40GW is available. NEW MODEL

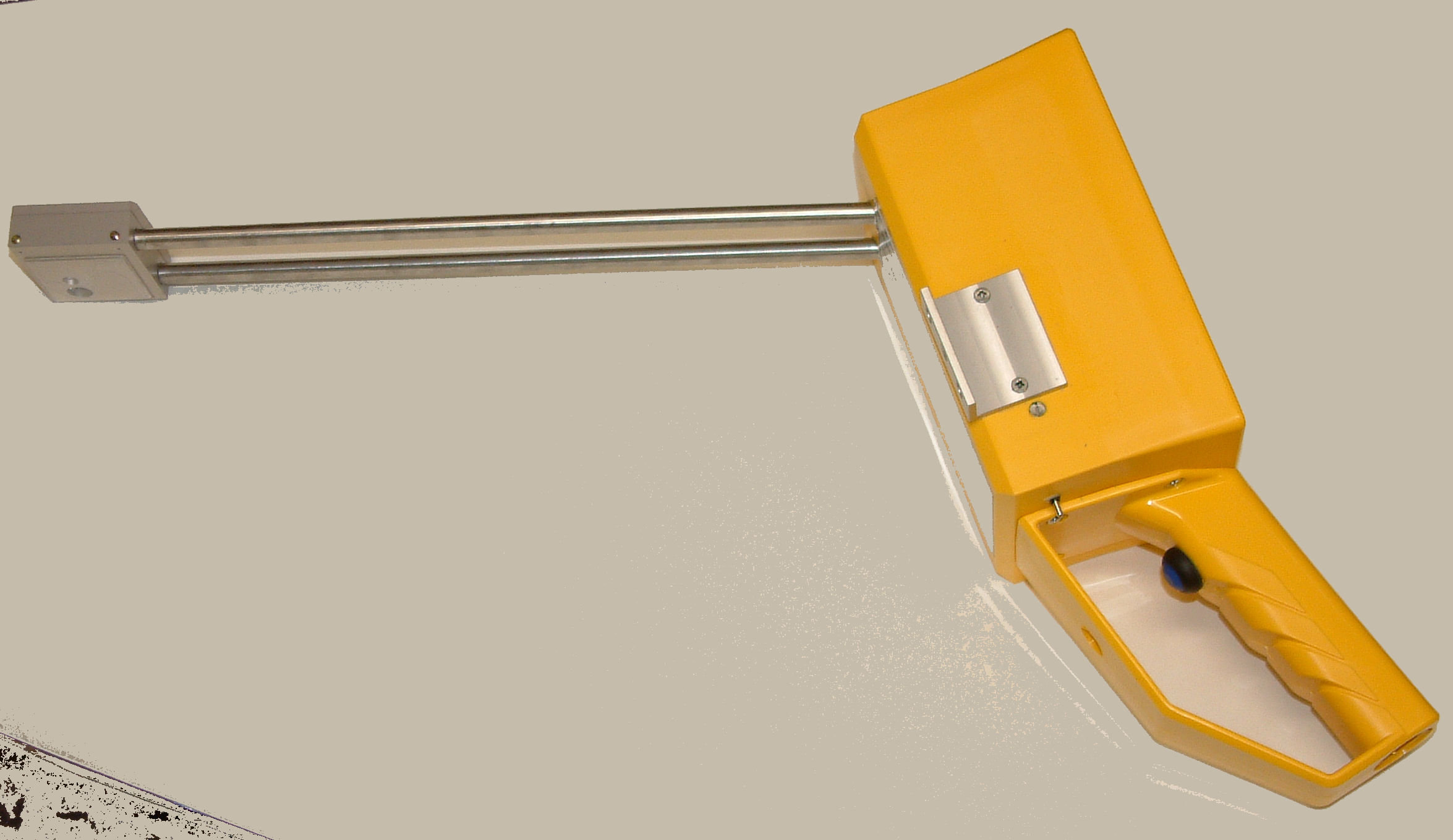

Revision S in delivery, available as standard AK40 and submodels AK40GW-R (right-handed fixture), AK0GW-L (left-handed) and AK40GW-P (portable)
. Please refer to product catalog and specific brochures for details.


Optional Accessories:

    • The keyboard and display can be ordered to be on the cover panel or inside the the cover. No extra cost on  this feature, mention it when ordering
    • Advanced software license
    • Moisture standard -STD for regular checking for long-term stability to prevent dirt effects

      • More information..
      • Maintenance Pack..
      • Applications..



Packing List of a Standard Product Shipping:

    • Model AK40 meter with calibrations according to customer samples plus some other useful ones
    • User's guides in a binder
    • Software on a CD or in a USB memory stick, full documentation in PDF format
    • model -PS power supply (classified), with an instrument cable of 7 m of length. The supply has an IEC320 connector for wall power having a nationalized end plug, if possible. The default delivery will have the standard European plug if the target is unknown.
    • serial cable for connection to PC's RS232 with some 3 m of length

    • serial cable for connection to PC's RS232 with some 1.2 m of length
    • USB-to serial RS232 converter module with the driver software for Windows
    • Bluetooth dongle and software for connection to a PC. The operating distance may be up to 100 m in good conditions
