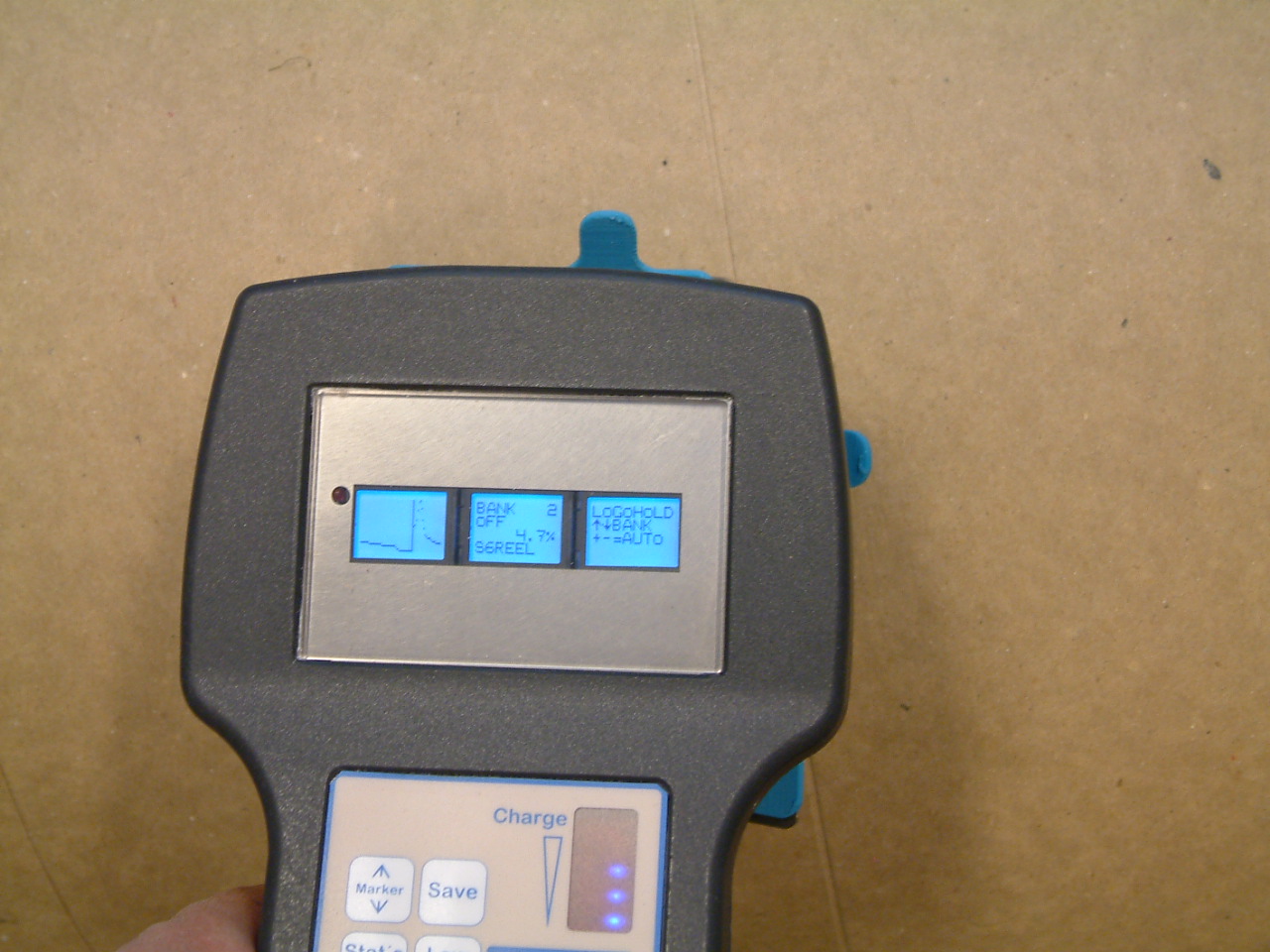

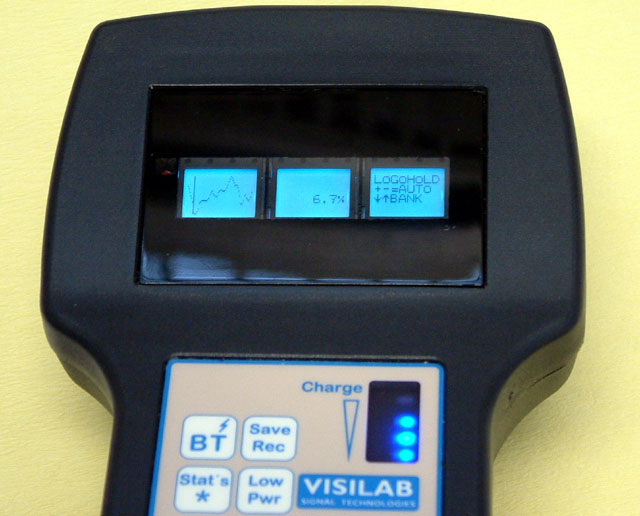

- a new small-sized and light-weight portable meter for field conditions - absolute state of the art in portable moisture meters - a new member of our moisture meter family: It is obviously a boy Product's top features: applications in laboratory, field and on-line troubleshooting in slow webs light weight 0,5 kg, structure IP 67 three high-contrast displays and a diaphragm keyboard operating period of 3.5 - 4 hours without battery recharging measuring distance 0...7 mm, area approximately 10 mm in diameter, no contact required shows a trend curve of recent history display's background colour may indicate crossing of preset moisture levels switched with a key to a large numeric display extremely low noise level superior long-term stability simple to use has useful data capture features, a large data memory intelligent software IRMA7Basic and IRMA7Mini with graphics, calibration tables, statistics, data retrieval low power mode when not in active use interfaces available: keyboard and display Bluetooth serial port for PC serial port RS232 for PC measuring speed is 75Hz and output is 5Hz for moisture data suitable for paper and board plus many other materials, like textiles, felts excellent for off-line quality control, complaint validation etc. a product-specific software AK30 and AK30Mini is available, free to download now also French language versions of AK30 and AK30Mini data displayed on the colour displays and collected to PC with the AK30, AK30Mini, IRMA7Mini, IRMA7Basic or the optional Advanced program: Check updates.. our price beats the competition designed and manufactured in Finland Revision 1K in delivery now
The meter in the optional carrying case.
Tips for Users:

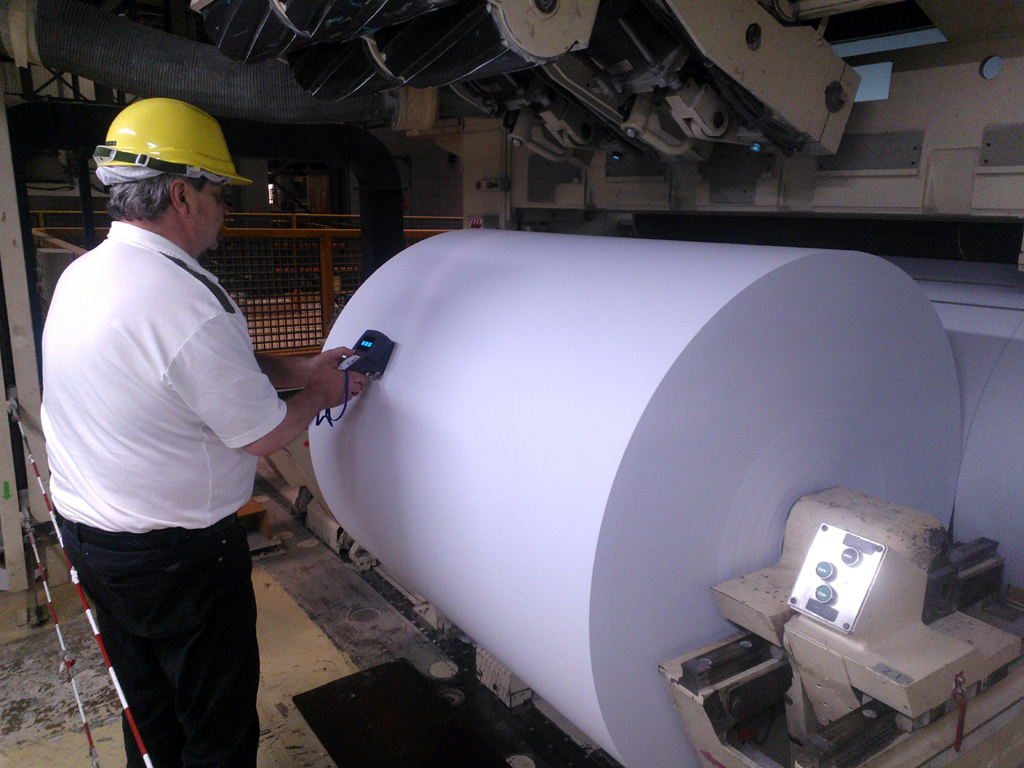

• avoid running the meter's battery completely empty. Recharging it would require more time than expected since the Lithium battery needs a refreshing initial charging before actual charge is put into it. Also, do not take as real the charge indicators when the battery has been run empty, they may show full charge even though it is completely empty. Let it charge overnight to be sure • some of the latest meters have a more advanced battery management. The power switch has three positions. Please avoid using the center position. Using it would only discharge the battery in a week. Use either of the extreme positions for ON or OFFExample Applications: Paper and board: roll measurements (single points and profiles), sheets and stacks, slow webs, coating and wetting experiments, lab calander nips, printing machines Wood chips and sawdust: container measurements, manual samples, slow processing machines and conveyors Felts and textiles: sampling for quality inspection, roll measurements, absorption, retention or evaporation testing Note papers and other special papers: roll quality control, sheet control, calibration transfer. Light-coloured minerals: container or sample measurements More.. Optional Accessories: A Power-user skid -PUS giving a full protection for the plastic case while measuring in difficult positions and against a moving web. A crude web surface may wear out the plastic case at the corners. -PUS has also a connector for air purge to prevent condensation and to keep the optical window clean. This option adds some to the total price. Mention this option while ordering. See pictures at the end of this page. a carrying case -CAR at a very economical price. Keeps the meter protected and ready for use. Advanced software license for an extended PC program Moisture standard -STD for regular checking for long-term stability More information.. Maintenance Pack.. Packing List of a Standard Product Shipping: Model AK30 meter with calibrations according to customer samples plus some other useful ones User's guides in a binder Software on a CD or in a USB memory stick depending on availability, having all of available software options, including a temporary license for the Advanced software model -PSAK power supply (classified), with an instrument cable of 1.2 m of length. The supply has an IEC320 connector for wall power having a nationalized end plug, if possible. The default delivery will have the standard European plug if the target is unknown. serial cable for connection to PC's RS232 with some 1.2 m of length Bluetooth dongle and software for connection to a PC. The operating distance may be up to 100 m in good conditions When the -PUS option is ordered, it is mounted to the meter in factory. The
delivery includes a Silicone tubing for the air purge, about 2 m minimum.

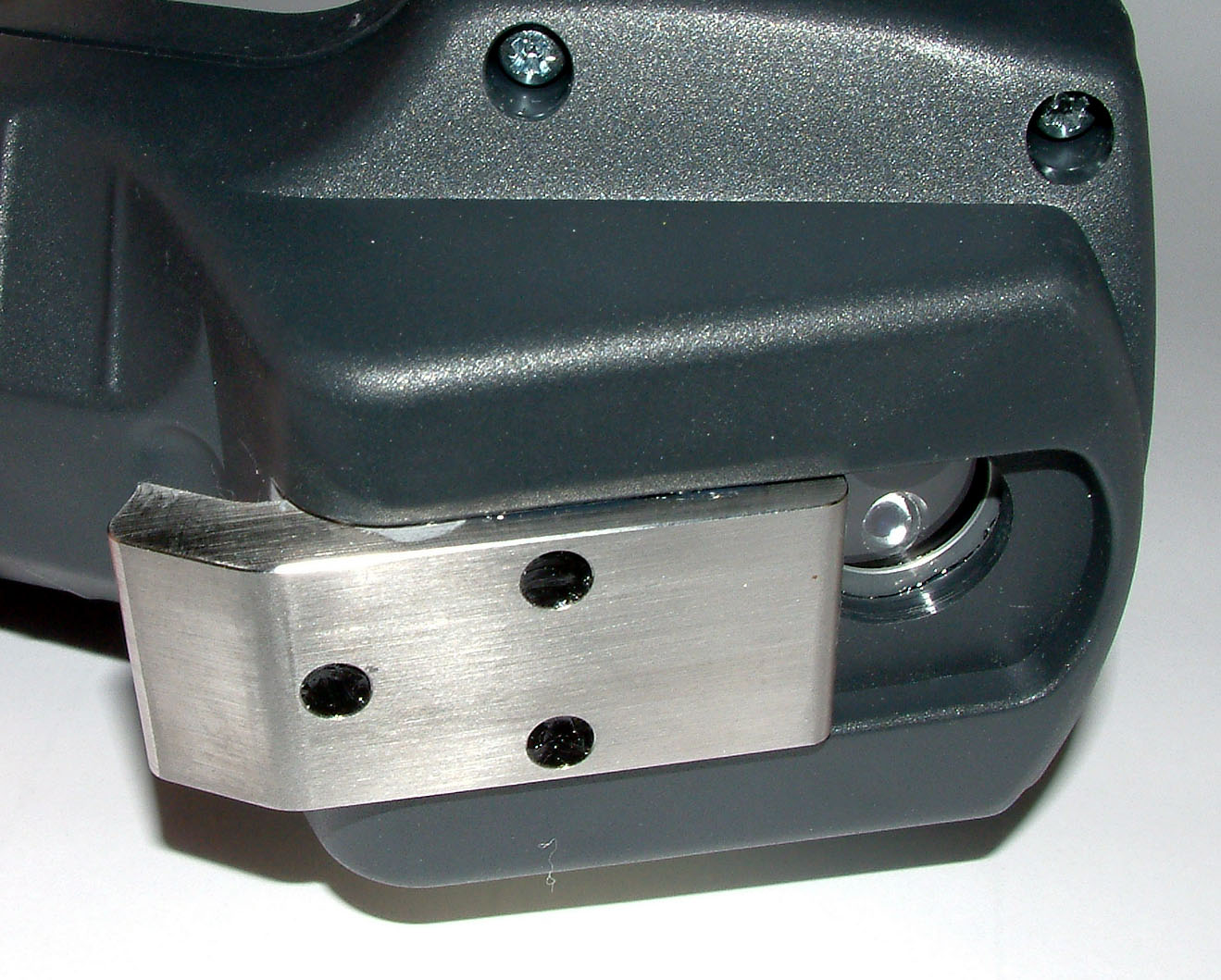

Feature Tour (English) Quick operating guide (English) Quick operating guide (Finnish) Quick operating guide (Swedish) Quick operating guide (French) AK30 and AK30Mini programs' manuals User's Guide for the Moisture Meter AK30 (Finnish) Operating Principle AK30 internal menu system User's Guide for the Moisture Standard Technical Note 31 Questions and Answers (English) Technical Note 32 Frågor och svar (Swedish) Connection Guide Data Flow Guide Technical Note 13 Various Measuring Modes Technical Note 27, using the Automatic Fine Tune with moisture meters Troubleshooting AK30 Protocol for RS232/485 Communications User's Guide for the Moisture Meter AK30 (English) The regular skid:

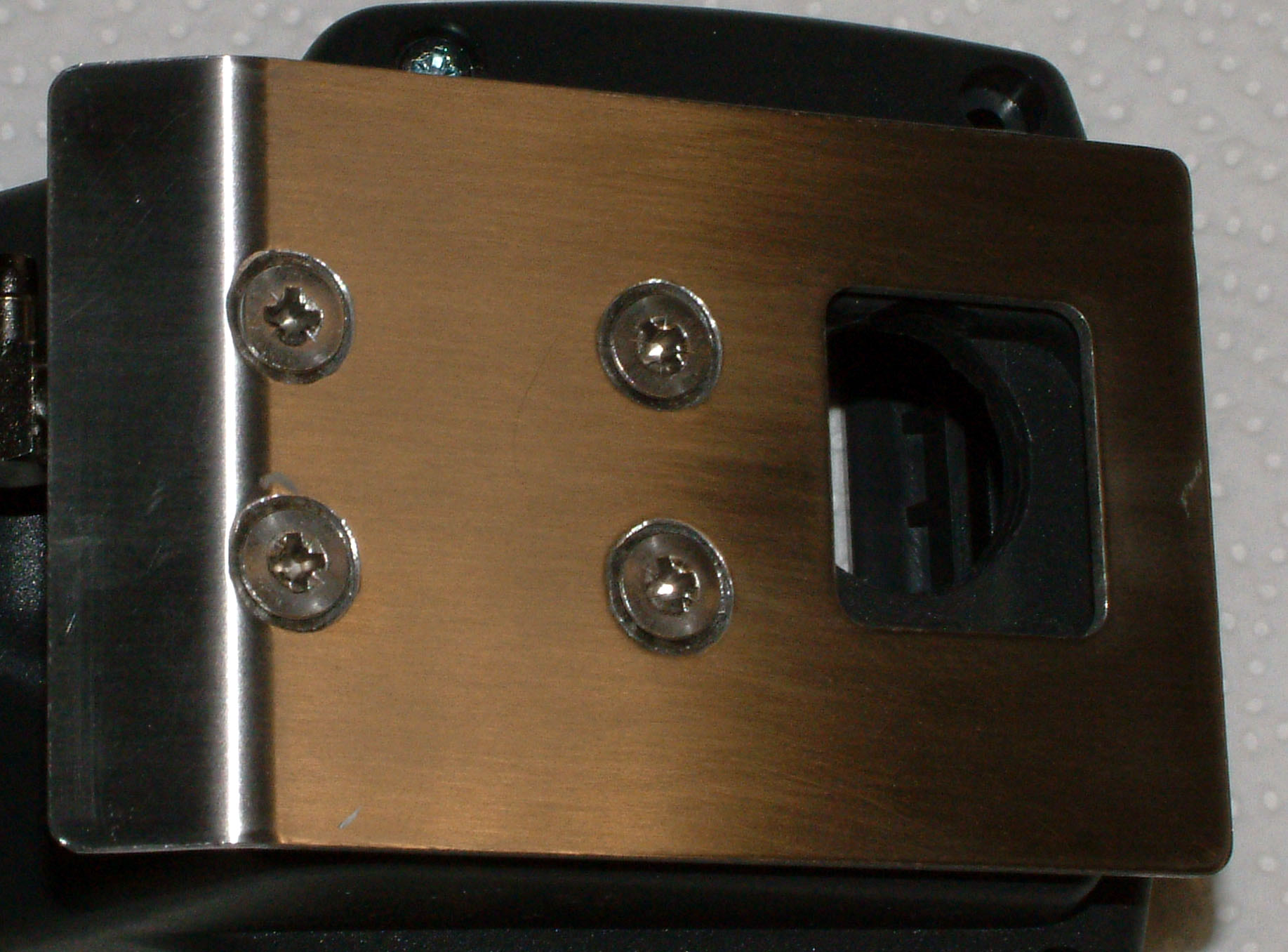

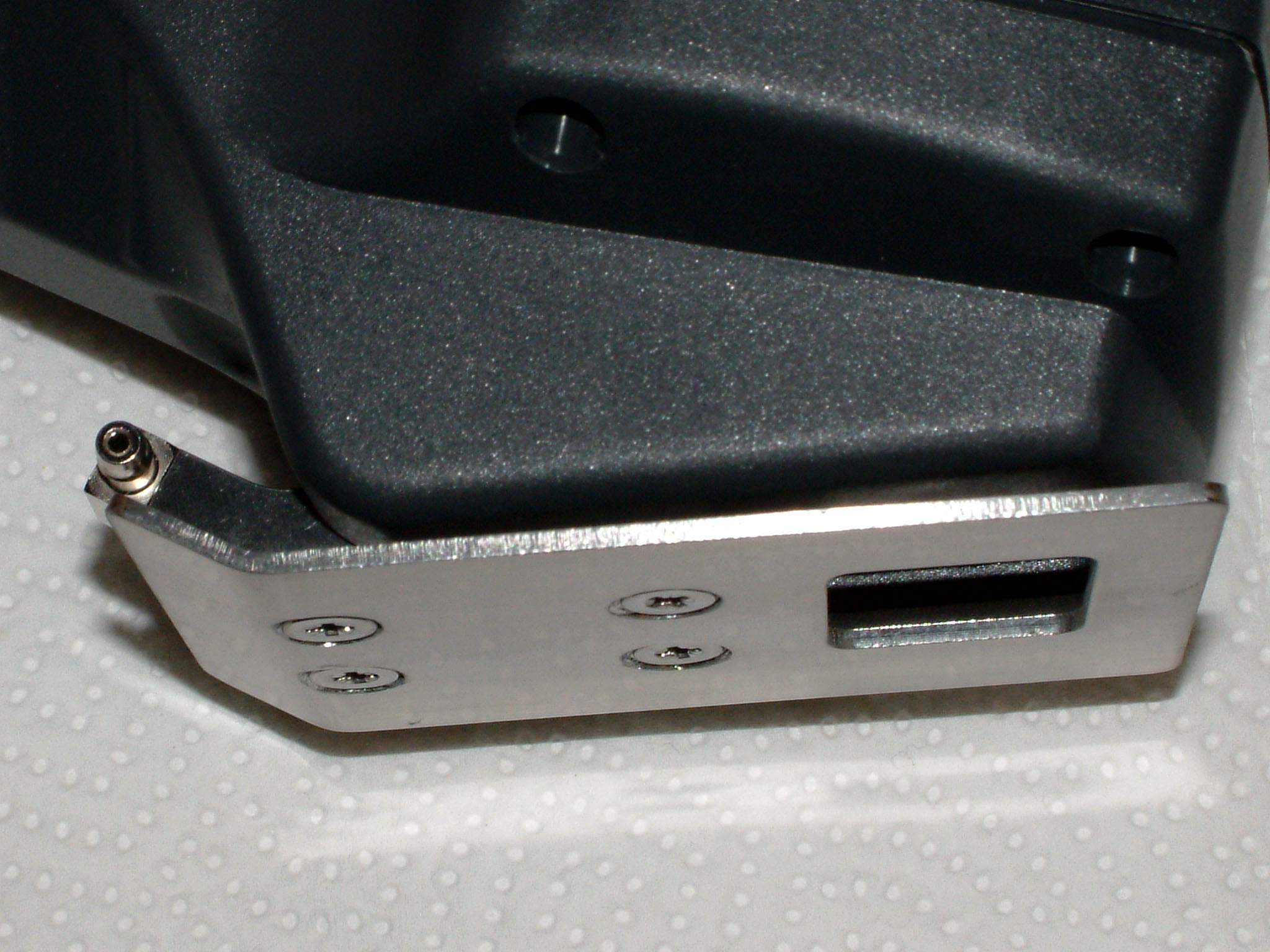

The Power-User Skid, -PUS:
